NXPA1.5MHZ-30MHz150W Portable RF Power Amplifier Module High-Power Anti-Drone & Anti-UAV System with Accessories

  • 1
  • 2

Brand Name : NENGXUN

Model Number : NXPA1.5MHZ-30MHz150W

Place of Origin : CHINA

MOQ : 1

Price : The price is negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000

Delivery Time : 5-8DAYS

Packaging Details : 25.6*111.7*17MM

Frequency : 1.5MHz~30MHz

Max output Power (CW) : ≥ 43dBm

Dimensions(mm)/Weight : ≤138.5×80×24.5 mm (without connectors), ≤420g

Installation method : Radiator shall be installed for power amplifier test

Contact Now

PN:NXPA1.5-30MHz 20W



  • Small size, Low power consumption, good stability;
  • High linearity and Intermodulation;
  • Shape structure can be customized
  • Products can be developed according specification;
  • Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

NXPA1.5MHZ-30MHz150W Portable RF Power Amplifier Module High-Power Anti-Drone & Anti-UAV System with Accessories

Technical Data



Parameters
Frequency

1.5MHz~30MHz


Max output Power (CW) ≥ 43dBm
Gain ≥ 43dB (customized)
Gain Flatness ≤ 1±1dB
Input VSWR ≤ 1.6
Input power 0±2dBm
Max Input +6dBm
Temperature protection Over 80℃ protection,with open circuit protection
PTT port Default off; 3.3~5V on
VCC/Current reference 28V/6A
Working voltage +28V~ +32V
Working current ≤ 3~4A
Spurious ≤ -65dBc
Harmonic ≤ -10dBc
Operating Temperature -30℃~+55℃
RF Connector SMA-F
Power Supply Interface feedthru capacitor
Dimensions(mm)/Weight ≤138.5×80×24.5 mm (without connectors), ≤420g
Installation method Radiator shall be installed for power amplifier test
Package 1pcs/box

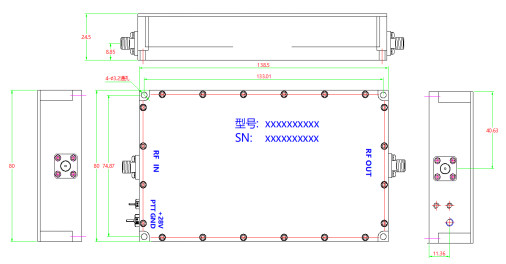

Outline Drawing

NXPA1.5MHZ-30MHz150W Portable RF Power Amplifier Module High-Power Anti-Drone & Anti-UAV System with Accessories
